Stationary Mechanic Stabilization
BMS series
Stationary Mechanical Stabilization
Genel
Tablo
PDF
Resimler
Videolar

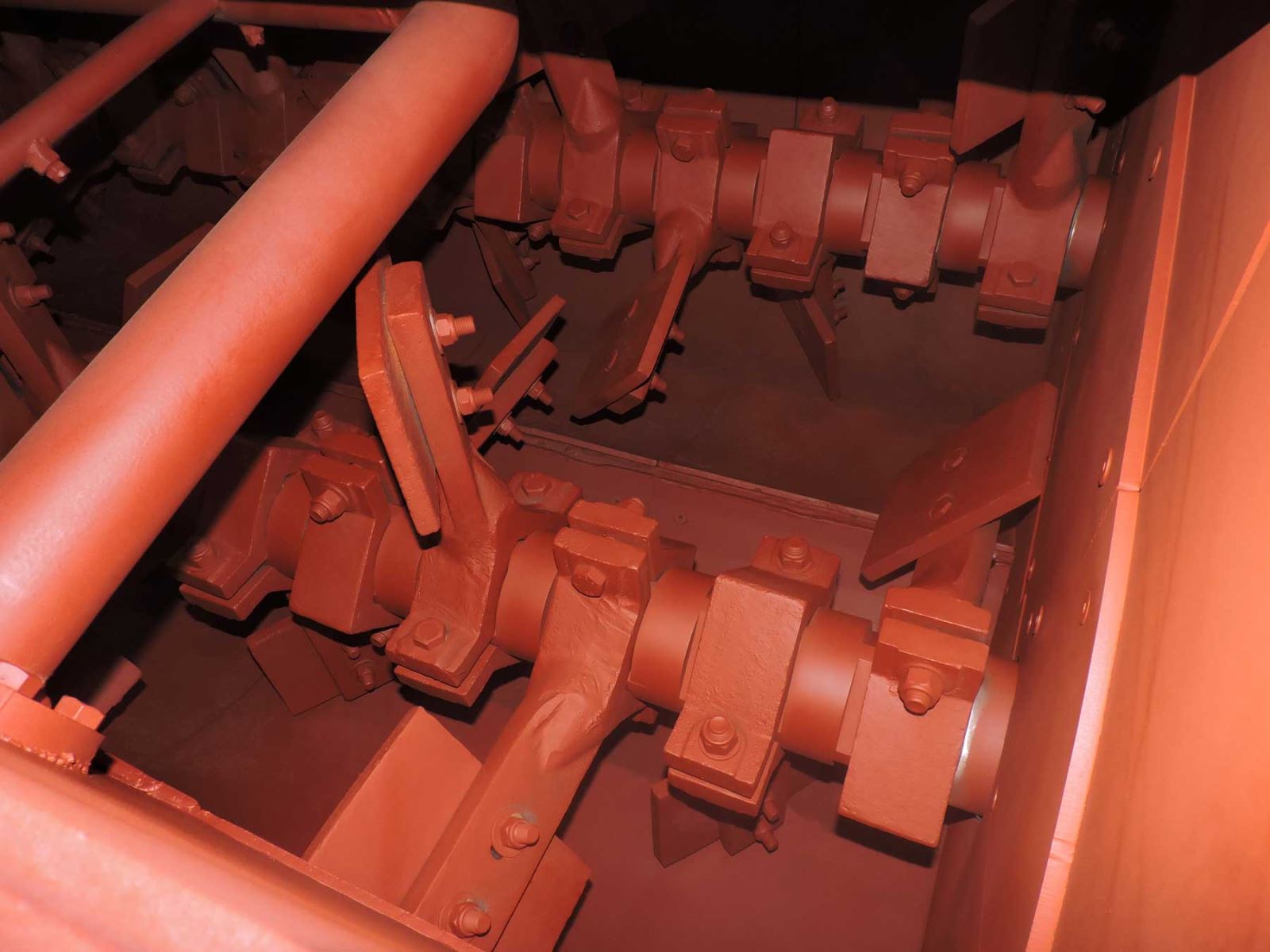

BMS Mixers are used in the asphalt road infrastructure to produce a homogeneous mixture of crushed material. A paddle mixer is discharged into the material prepared in the desired proportion, which then is uniformly mixed by moving towards the discharge opening. Through the introduction of water during the mixing process, the desired amount of water is added to the mixture.

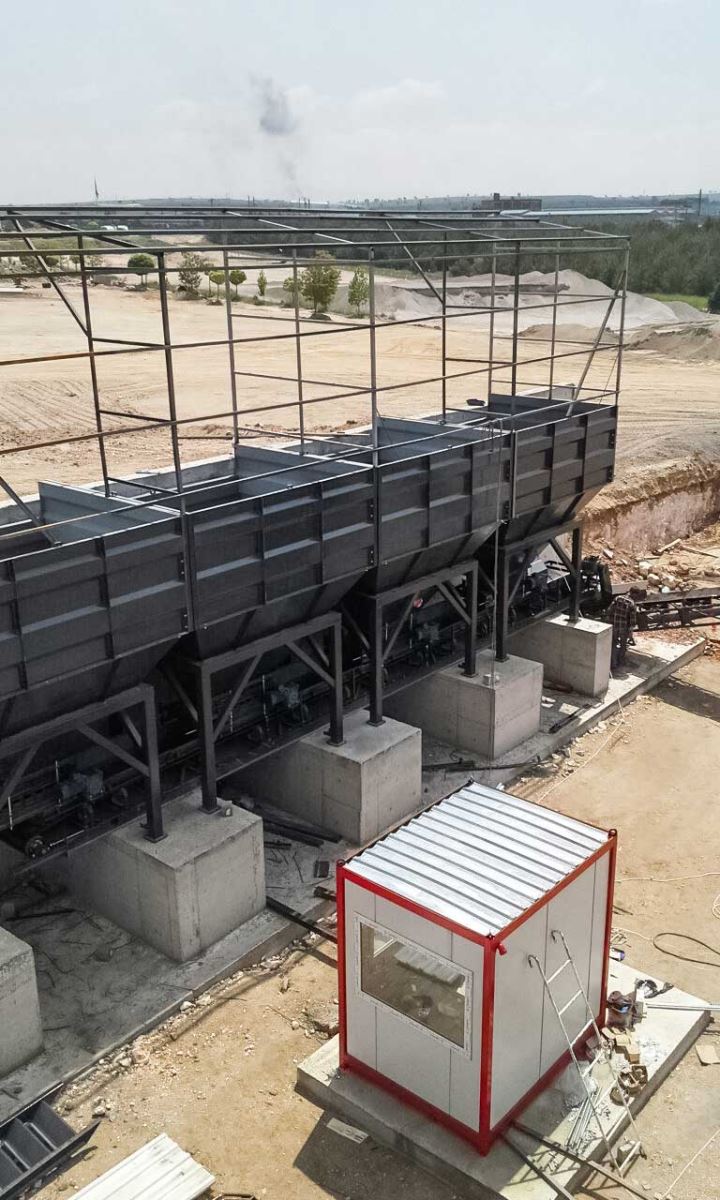

Boratas aggregate bunkers are produced in 2 different types with capacity of 250-300 t/h and 450-500 t/h, depending on the asphalt-construction sites' demand. A group of 4 aggregate hoppers is completed with feeder belts and the material flow is adjusted mechanically.
ModelCapacity
(t/h)
Hopper Volume
(m³)
Feeding Conveyor
(mm)
Collecting Conveyor
(mm)
BMS 2502504 x 17600 x 1500800 x 14000
BMS 5005004 x 17800 x 15001000 x 14000
Stationary Mechanical Stabilization Stationary Mechanical Stabilization Stationary Mechanical Stabilization Stationary Mechanical Stabilization Stationary Mechanical Stabilization
Boratas Machinery Crushing and Screening Plant

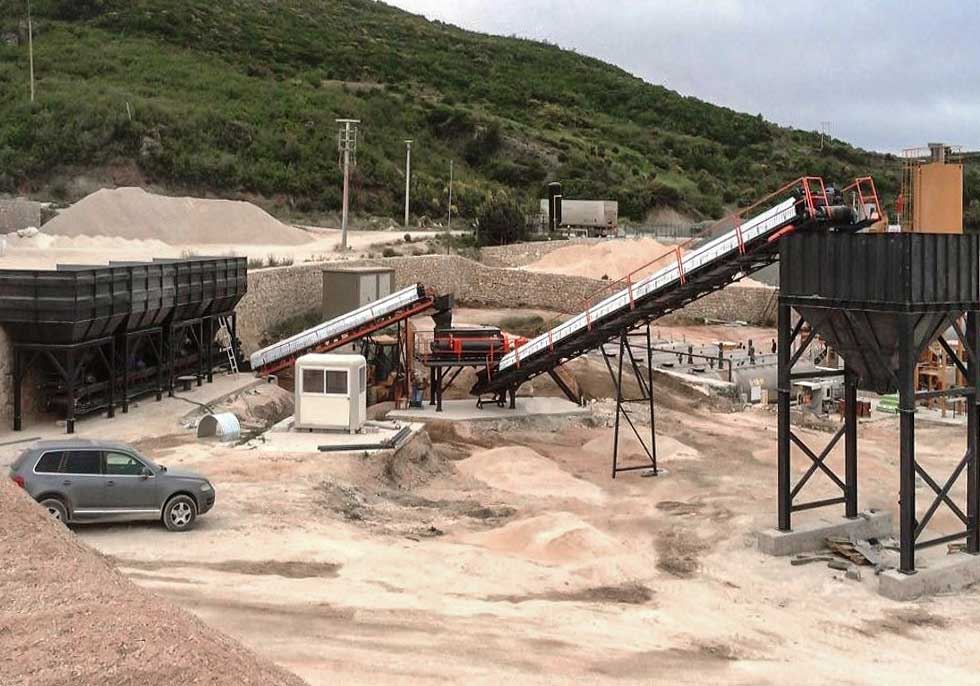

Crushing and Screening Plant with 250-275 t/h Crushing material: Bazalt
